The nrf24 daemon is a service which runs on a raspberry pi used to interface with a nrf24l01+ chip, especially the NRF24 board.

Setup

  1. Open the project with codeblocks and compile the release build.
  2. Open the project directory in bash and run ./install
  3. Change directory to /opt/nrf24d/interrupts/
  4. For each device which may send commands create a script which is simply named by its id (e.g. 1500). The first parameter contains the event id while the second contains its value.

Pinout

The pin in the top left corner is pin 1 and is denoted by a square on the PCB.

Pinouts for the NRF module and Raspberry Pi Pinouts for the NRF24L01+ board.

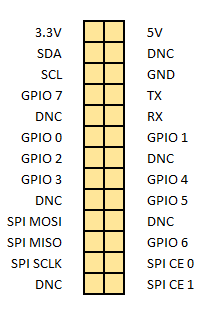

Pinouts for the NRF module and Raspberry Pi Pinouts for the Raspberry Pi.

The following connection is necessary:

NRF24L01+ Raspberry PI
GND GND
VCC 3.3V
CSN SPI CE 0
CE GPIO 3
IRQ GPIO 2
SCK SPI SCLK
MOSI SPI MOSI
MISO SPI MISO

Example Interrupt Script

$ cat /opt/nrf24d/interrupts/1500
#!/bin/sh

# <arg1> = event id
# <arg2> = value
# event = event 0 (in this case turn on/off lamps)

if [ "$1" -eq "0" ]; then
    # default case turn off lamps
    VAL=0
    #if second argument is 0 then turn on lamps
    if [ "$2" -eq "0" ]; then
        VAL=2
    fi
    # send commands to lamps
    /opt/nrf24d/nrf24ctl 1521 "$VAL" &
    /opt/nrf24d/nrf24ctl 1522 "$VAL"
fi

NRF24 Control Command

The command nrf24ctl can be used to send commands to the lamps via the ipc server. It has two different command lines:

# Sends a command to the board with the specified id to change its PORTB register
# to the specified value. This is equivalent to:
#
#   /opt/nrf24d/nrf24ctl <id> 4 716 <value>
#
/opt/nrf24d/nrf24ctl <id> <value>

# Sends a command with the specified addres and value to board id.
/opt/nrf24d/nrf24ctl <id> <command> <address> <value>
